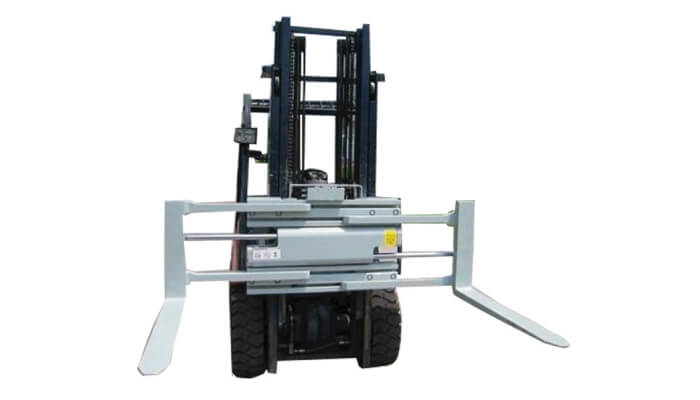

Fork Clamps

Ask For Quote

Application:

Fork clamps not only can be used for holding cargo, but also can be used for forking goods with pallet. Improve transport efficiency , reduce the damage of tray apply to tobacco, paper making, chemical fiber, workshop ,ports and other industries rapid handing and stacking operation.

Features:

  • Proven durable T-beam arm aluminum frame construction.
  • Superior arm-side bearing for extended service life.
  • Regenerative hydraulic valuing for optimal arm speed.
  • Excellent driver visibility.

Specification:

Model Capacity
@Load
Center
/kg@mm		 Mounting
Class		 Opening
Range/mm		 Arm
Length
/mm		 Frame
Width
/mm		 Height
/mm		 Weight
/kg		 Effective
Thickness
/mm		 Horizontal
Center of
Gravity
/mm
CFS20D-001A 1100@600 II 435-1555 915 865 620 250 175 163
CFS20D-002A 1100@600 II 435-1555 1065 865 620 259 175 191
CFS20D-003A 1100@600 II 435-1555 1220 865 620 268 175 226
CFS20D-004A 1600@600 II 410-1660 915 940 620 295 180 168
CFS20D-005A 1600@600 11 410-1660 1065 940 620 306 180 198
CFS20D-006A 1600@600 II 410-1660 1220 940 620 328 180 231
CFS30D-001A 2300@600 II 465-1810 915 1015 915 401 208 173
CFS30D-001B 2300@600 III 465-1810 915 1015 915 422 216 168
CFS30D-002A 2300@600 II 465-1810 1065 1015 915 420 208 203
CFS30D-002B 2300@600 III 465-1810 1065 1015 915 438 216 201
CFS30D-003A 2300@600 II 465-1810 1220 1015 915 435 208 226
CFS30D-003B 2300@600 III 465-1810 1220 1015 915 4 216 201



Note:

  • Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
  • Two sets additional oil circuit required on forklift.
  • Opening arm can be added on the fork clamps as requires
  • Provide the different fork demand as requires
  • Please contact the sales from Huamai.



Hydraulic Flow & Pressure:

Model Min.Hydraulic Flow(L/min) Rec. Hydraulic Flow(L/min) Max.Hydraulic Flow(L/min) Min. Hydraulic Pressure(Bar) Max. Hydraulic Pressure(Bar)
CFS20D 15 25 25 35 160
CFS30D 15 40 40 35 160

Options:

  • Fork Sizes
  • Various mounting classes available
  • Custom opening ranges
